Intgrated Non Destructive Testing Equipment Vibration Transmitter Hg-808a

HG-808A Intgrated Vibration Transmitter

I Brief Introduction

The integrated vibration sensor and transmitter is easy to install on the equipment to be used in conjunction with condition monitoring systems, such as panel meters, DCS, and PLC, etc. It is particularly applicable to monitor online the conditions of important machinery.

The integrated vibration transmitter integrates a shear-mode piezoelectric accelerometer with amplifier, integrator and transmitter to output the RMS value of the vibration acceleration, velocity or displacement (looped power 2-line or 3-line 4-20mA current signal).

II Technical Specifications

l Accelerometer:

; Shear-mode Ceramic piezoelectric

; Self-temperature-compensation of sensitivity

; Transverse sensitivity max: <5%

; Case: stainless steel, air-tight

; Ground isolated

; Measurement range: 50, 100; 150 m/s²

l Output:

; Value: True RMS or equivalent peak

; Parameter: Acceleration, velocity or displacement

; Line: 2- or 3-line 4~20mA;

; Optional Dynamic voltage output

; Output load resistance: 0~500 ohm

l Frequency response: 5~2000Hz

l Operating temperature (^oC): -20~+80

l Power supply: 20~30Vdc looped

l Connector for cable: (SY)×12k×3P

l Connector direction: side

l Sensor installation: one M8 or M5 or M20

l Size: Ø 40 ×73 mm

l Weight: 370g

III Wiring

IV Precautions

1) The sensor must have a close and rigid contact with the item under test, whose surface must be very smooth. The sensor is installed with lock washer.

2) The cable and connector can be pasted with a shield of silicone rubber after being tightened together to prevent them from getting loose.

non destructive testing machine

ndt testing equipment

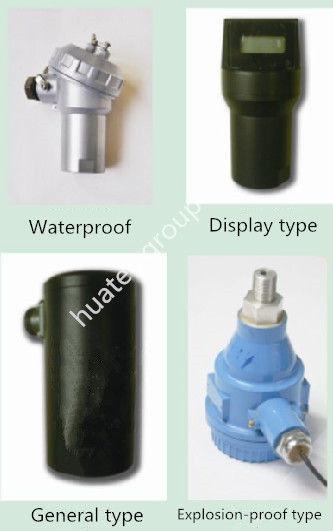

Intgrated Non Destructive Testing Equipment Vibration Transmitter Hg-808a Images
